SQ Guide System

The SQ Guide is a Digital Implant Guide System Optimized for The SQ Implant Fixture

Full Solution Guide System

Place the implant in the correct position by virtually doing the implant placement through the software

Exclusive Guide System for The SQ Implant

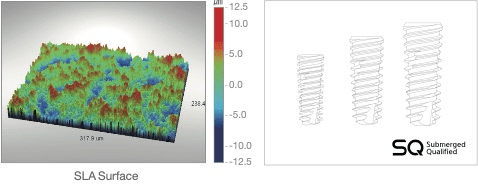

Computer guided implant placement for the SQ Implant that has the advanced SLA surface
The SQ Implant Fixture Sizes
- Diameter: Ø3.5, Ø4.0, Ø4.5, Ø5.0
- Length: 7.0mm, 8.0mm, 10.0mm, 12.0mm, 14.0mm

SQ GUIDE Sleeve

Titanium metal sleeve is used

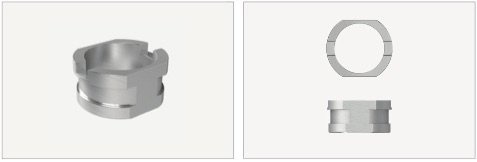

SQ GUIDE Sleeve information
- Base Offset: 9.0mm
- Inner Diameter: Ø5.35
- Length: 3.5mm, 4.5mm

SQ GUIDE Software

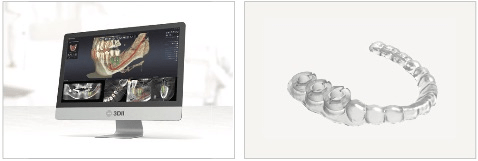

SQ GUIDE is available with Dentiq Guide S/W or Implant Studio S/W
Chair-side production is possible with DENTIS Implant and sleeve library

SQ Surgical Kit

Safety

Irrigation function added to prevent bone loss and bone heating
Available exclusively for the Dentis SQ Implant
Using a metal sleeve helps prevent contamination of the surgical site by guide resin, which may occur during drilling

Accuracy

With the initial drill (F Ø3.5 STEP Drill), you can drill without slipping because of the side cutting function

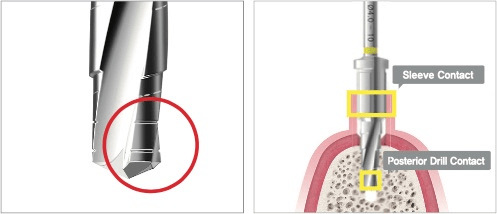

Drilling can be performed with precision as the lower end of the trailing drill is anchored in the previously drilled site, while the upper end, or guide hole, is securely stabilized by the sleeve around the drill’s barrel

Convenience

By adopting the multi-stage drill, the number of drills can be minimized and the operation can be performed quickly.
Added convenience: Tissue Punch, Flattener, Profiler Drill, etc.

Countersink Drill

Prevents excessive installation torque when widening cortical bone (especially when the offset is 13mm)
Recommended RPM : 800 – 1,200

Size	Product Code
Ø2.2	DSQGID22
Ø3.5	DSQGID35

※ Irrigation function of drill part, prevention of bone heating

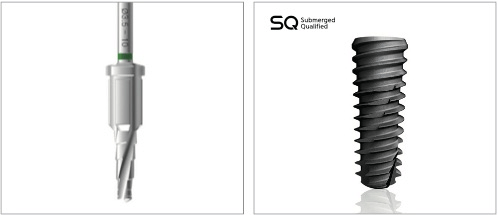

Initial Drill

Used to form holes that ensure precise orientation at the initial stage
Recommended RPM: 800~1,200

Size	Product Code
Ø3.5	DSQGCS35
Ø4.0	DSQGCS40
Ø4.5	DSQGCS45
Ø5.0	DSQGCS50

※ Additional purchase: Ø3.5, Ø4.0, Ø4.5

STEP Drill

Used for establishing diameter and length for fixture placement
Improved cutting ability and slip prevention through multistep structure and side cutting design
Prevents bone heating with drill bit irrigation
Recommended RPM: 800 – 1,200

Length/Size	2.2	3.5	4.0	4.5	5.0
8.0mm	DSQGSTD 2208	DSQGSTD 3508	DSQGSTD 4008	DSQGSTD 4508	DSQGSTD 5008
10.0mm	DSQGSTD 2210	DSQGSTD 3510	DSQGSTD 4010	DSQGSTD 4510	DSQGSTD 5010
12.0mm	DSQGSTD 2212	DSQGSTD 3512	DSQGSTD 4012	DSQGSTD 4512	DSQGSTD 5012
14.0mm	DSQGSTD 2214	DSQGSTD 3514	DSQGSTD 4014	DSQGSTD 4514	DSQGSTD 5014
16.0mm	DSQGSTD 2216	DSQGSTD 3516	DSQGSTD 4016	DSQGSTD 4516	DSQGSTD 5016

※ Irrigation function of drill part, prevention of bone heating

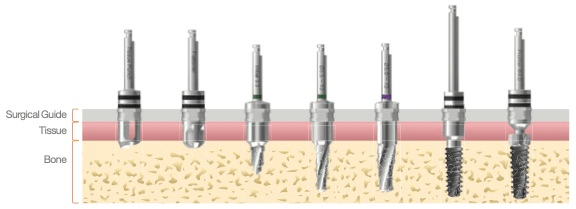

Drilling Protocol for Ø5.0x10.0mm Fixture(Offset 9.0mm)

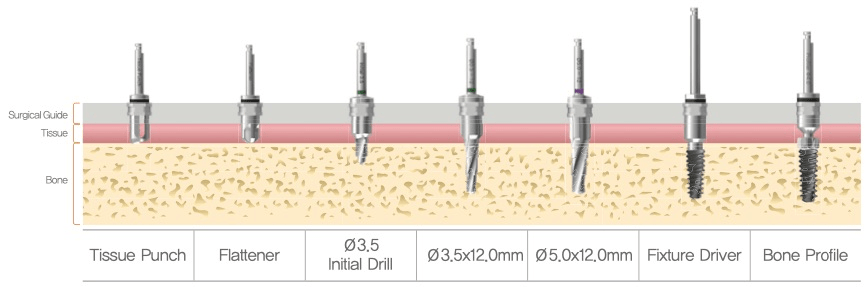

Drilling Protocol for Ø5.0x10.0mm Fixture(Offset 11.0mm)

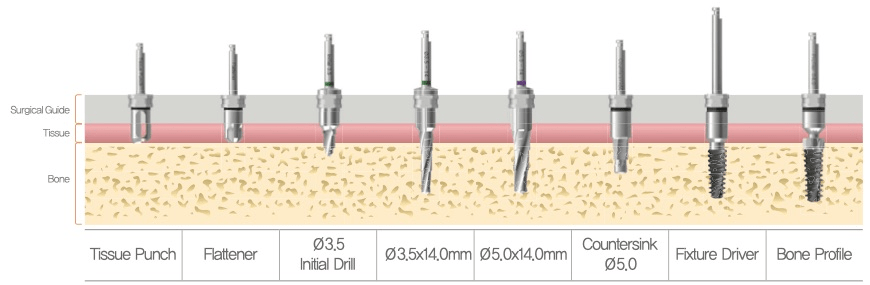

Drilling Protocol for Ø5.0x10.0mm Fixture(Offset 13.0mm)

SQ GUIDE System Workflow
